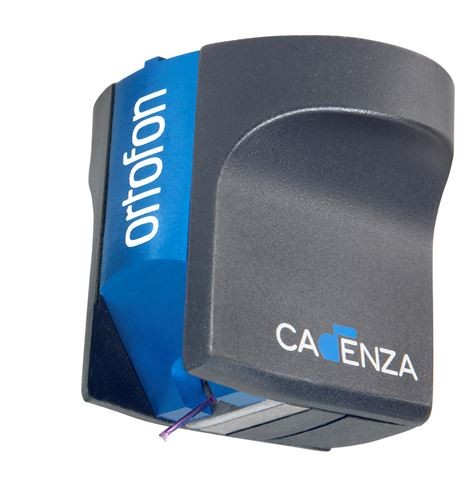

MC Cadenza Blue Pikap İğnesi
Technical Data | |
Output voltage at 1 kHz 5 cm/sec | 0,5 mV |
Channel balance | < 1,2 dB |
Channel separation at 1 kHz | > 23 dB |
Channel separation at 15 kHz | > 15 dB |
Frequency range at -3 dB | 20 Hz – 50 kHz |
Frequency response 20 Hz – 20 kHz | +2/-1 |
Tracking ability at 315 Hz at recommended tracking force *) | 80 μm |
Compliance, dynamic, lateral | 12 μm/mN |
Stylus type | Nude FG 70 on Ruby cantilever |
Stylus tip radius | r/R 6/70 |
Tracking force range | 2,2-2,7 g (22-27 mN) |
Tracking force recommended | 2,5 g (25 mN) |
Tracking angle | 20º |
Internal impedance, DC resistance | 5 Ohm |
Recommended load impedance | 50-200 Ohm |
Cartridge body material | Stainless steel Aluminium |
Cartridge colour | Blue/Black |
Cartridge weight | 10,7 g |
